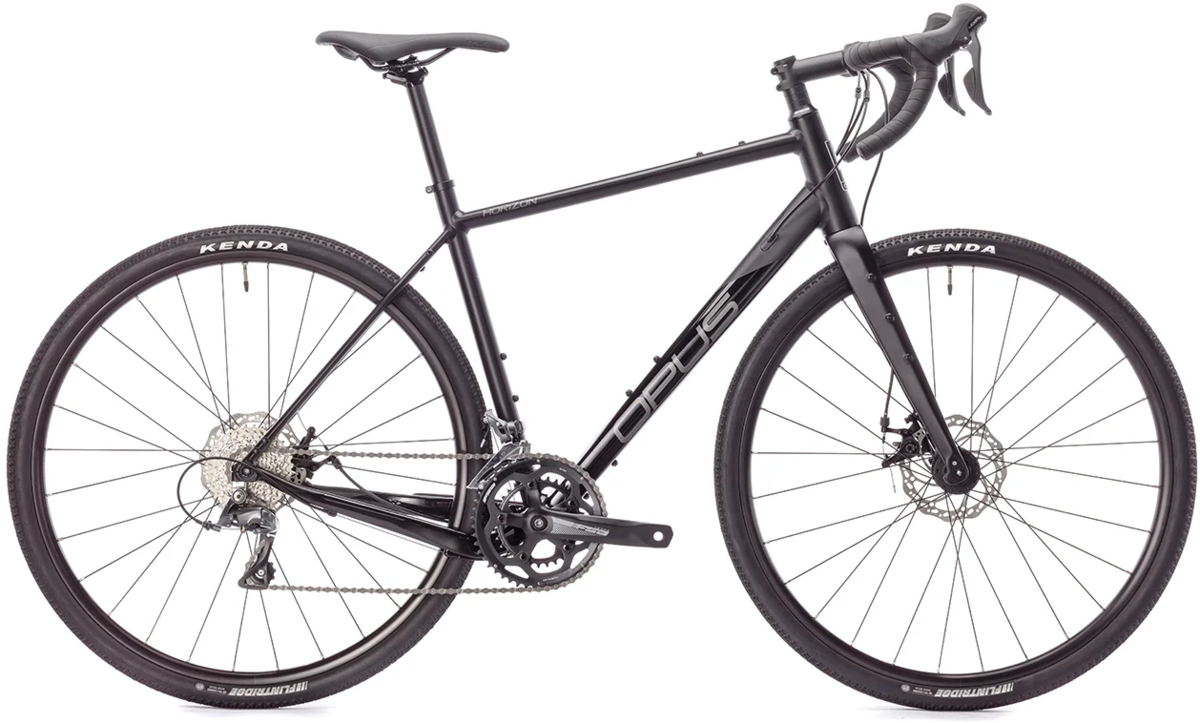

Opus Horizon AL Claris

Opus Horizon AL Claris
  • Color: Stealth Black
$1,835.99
Color: Stealth Black
Size: Select size
Please select options Unavailable

Details

THE ONE AND ONLY

Dressed up or stripped down, the Horizon AL Claris supports you all the way—whether you're an everyday commuter, weekend warrior, or adventure-seeker. Attach fenders or racks, and it'll even handle loads for long-distance treks. Plus, its sleek, understated design keeps it just under the radar—right where you want it.

- Proven Horizon Progressive Geometry to master all surfaces
- Full carbon fork with triple mounts for bottle or bags
- 8-speed Shimano Claris drivetrain with FSA Adventure crank
- Big clearance for 700c x 45 tires, can be used with 650B x 50 wheels and tires
- Rear rack and fender mounts, 5 bottle and top tube mounts

bike frame with labeled dimensions
Bike Sizes:
XXSXSSMLXL
A. Reach 372mm 376mm 380mm 384mm 392mm 400mm
B. Stack 534mm 553mm 572mm 590mm 610mm 630mm
C. Standover 718mm 743mm 766mm 791mm 818mm 847mm
D. Effective Top Tube 515mm 530mm 544mm 559mm 578mm 599mm
E. Head Tube Angle 69.75° 70.5° 71° 71.5° 72° 72.5°
F. Head Tube Length 113mm 133mm 153mm 173mm 193mm 213mm
G. Seat Tube Angle 75° 74.5° 74° 73.5° 73° 72.5°
H. Seat Tube Length 420mm 450mm 480mm 510mm 545mm 580mm
J. Bottom Bracket Drop 80mm 78mm 76mm 74mm 73mm 72mm
O. Chainstay Length 425mm 425mm 427mm 427mm 429mm 429mm
Handlebar Width 380mm 400mm 420mm 420mm 440mm 460mm
Stem Length 70mm 80mm 90mm 100mm 110mm 110mm
Crank Length 165mm 170mm 172mm 172mm 172mm 175mm

Specs

Frame Meta 30 aluminum
Fork Full carbon tapered 1-1/2 to 1-1/8 in
Rims Weinmann U28TL
Hubs Alex Bear Pawls through axle 12 mm fr/rr
Tires Kenda Flintridge Sport 700c x 35
Bottom Bracket FSA sealed BSC threaded
Crankset FSA Tempo Adventure
Chainrings 48-32T
Shifters Shimano Claris R2000 2 x 8
Front Derailleur Shimano Claris R2000
Rear Derailleur Shimano Claris R2000
Cassette/Freewheel Shimano 11-32
Chain KMC Z8.3
Brakes Promax Decode R Flat Mount twin piston disc
Brake Levers Shimano
Handlebars X-Race Aero 16° flare
Tape/Grips Velo VexGel diamond grip
Stem Promax
Headset FSA Orbit integrated sealed
Seatpost Promax alloy 27.2 x 300
Saddle Opus Endurance
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Stealth Black / X-Small 624316099703 OP-HORALCL21STBV2-XS 210000009971
Stealth Black / Small 624316099710 OP-HORALCL21STBV2-S 210000009982
Stealth Black / Medium 624316099727 OP-HORALCL21STBV2-M
Stealth Black / X-Large 624316099758 OP-HORALCL21STBV2-XL 210000009972
