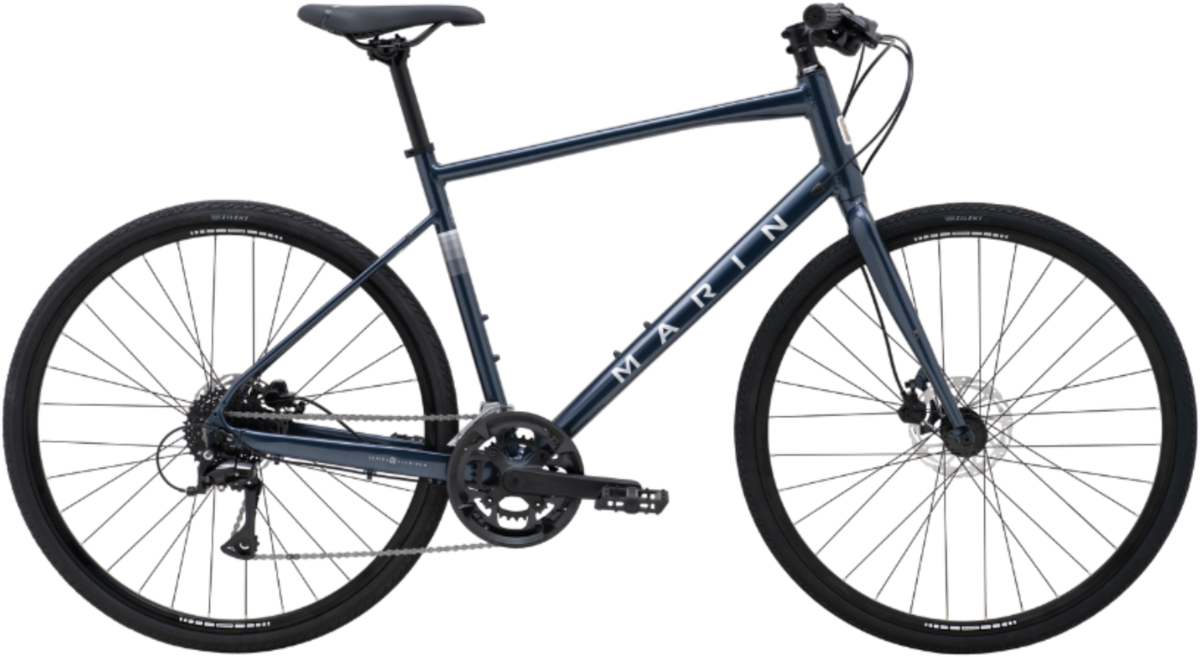

Marin Fairfax 2

Marin Fairfax 2
  • Color: Blue Silver
$949.00
Color: Blue Silver
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

The Fairfax line of fitness bikes has the speed of a road bike with a more comfortable upright position for meeting your weekly riding goals. Built with weekend bike path and weekday fitness riders in mind, Fairfax bikes are equally at home on shorter after work rides or longer weekend adventures. Disc brakes provide sure stopping power in all conditions, and all frames feature rack and fender mounts for commuter use.

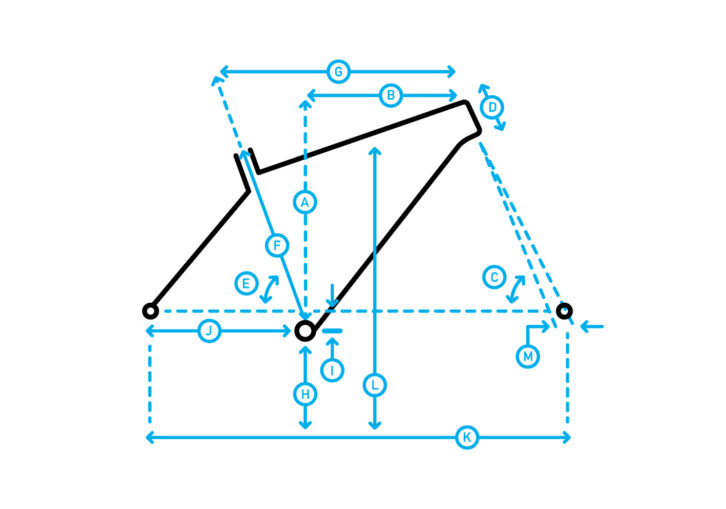

Geometry Chart
Geometry Chart:
XSSMLXL
A Stack 557 571.3 590 609 637.3
B Reach 385 400 420 440 455
C Headtube Angle 70.5° 70.5° 70.5° 70.5° 70.5°
D Headtube Length 140 155 175 195 225
E Seattube Angle 73.5° 73.5° 73.5° 73.5° 73.5°
F Seattube Length 380 430 480 520 550
G Toptube Effective 550 569.2 594.8 620.4 643.8
H BB Height 283.5 283.5 283.5 283.5 283.5
I BB Drop 70 70 70 70 70
J Chainstay 445 445 445 445 445
K Wheelbase 1050.01 1070 1096.7 1123.4 1148.4
L Standover Height 660.74 705.38 745.2 780.34 809.68
M Fork Offset 50 50 50 50 50
Seatpost Diameter 27.2 27.2 27.2 27.2 27.2
Handlebar Width 640 640 680 680 680
Stem Length 70 70 70 70 70
Crank Length 170 170 175 175 175

- All lengths in millimeters

Specs

Frame Series 2 Fitness, 6061 Aluminum, 700C Wheels, Internal Cable Routing, Disc Specific Forged QR Dropouts, Rear Kickstand Mount, Fender and Rack Mounts
Fork 6061 Aluminum, Straight-Blade, Disc Mount, QR Dropouts, Fender and Rack Eyelets
Hubs Forged Aluminum Alloy, Disc, 32H
Spokes 14g Black Stainless Steel
Tires Vee Tire Co., Zilent, 700Cx35mm, Puncture Protection, Wire Bead
Bottom Bracket Sealed Cartridge Bearings, Square Taper
Crankset Forged Alloy Crank, 46/30T, Ring Guard
Shifters Shimano Altus 2x8
Front Derailleur Shimano TY710
Rear Derailleur Shimano Acera, 8-Speed
Cassette/Freewheel SunRace 8-Speed, 11-34T
Chain KMC Z8
Brakes Tektro HDM275 Hydraulic Disc, 160mm Rotor
Brake Levers Tektro Hydraulic
Handlebars Marin Alloy Flat, 31.8mm
Tape/Grips Marin Ergonomic Locking
Stem Marin 3D Forged Alloy
Seatpost Marin Alloy, 27.2mm
Saddle Marin Fitness Plush
Pedals Nylon Platform

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Blue Silver / X-Small / 700c 843346136541 740839001
Blue Silver / Small / 700c 843346136565 740839002 210000011126
Blue Silver / Medium / 700c 843346136589 740839003 210000011119
Blue Silver / Large / 700c 843346136602 740839004 210000011127
Blue Silver / X-Large / 700c 843346136626 740839005 210000011120
