Details

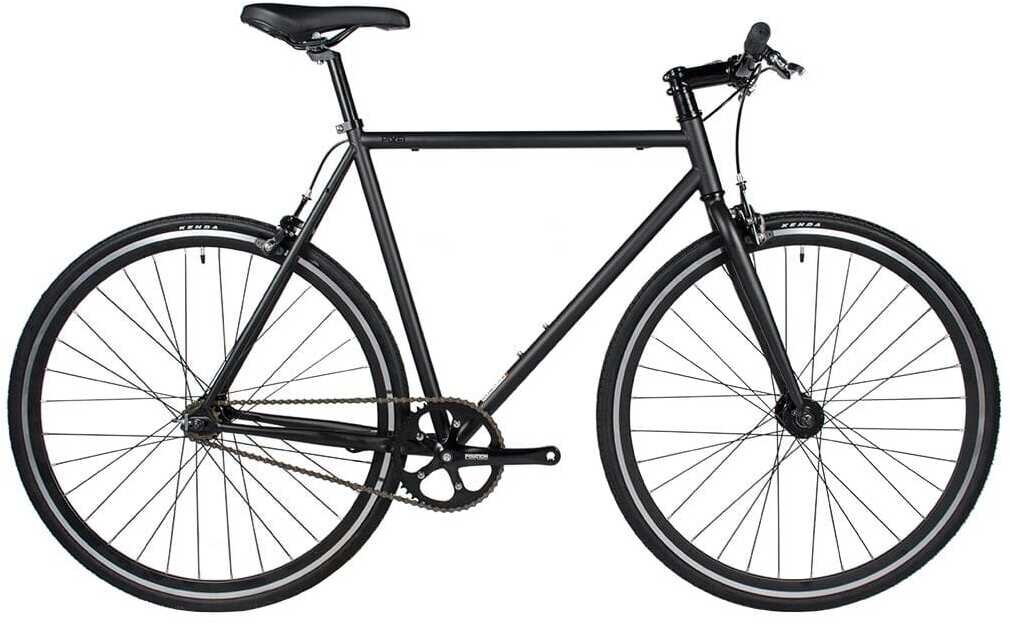

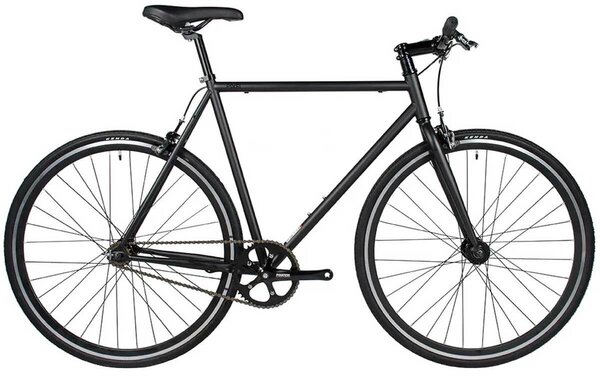

MEET THE PIXEL

Fun, fast and affordable, the Pixel is a hassle-free fixed gear/single speed bicycle designed and built by Fyxation for the everyday rider. The Pixel has an upright design that makes it ideal for sliding through traffic, commuting to work or simply cruising around campus.

Featuring Fyxation's durable steel frame, sealed bearing hubs and bottom bracket, forged 6061 alloy cranks, flip-flop hub so it can run as a fixed gear or single speed and light but quick 30mm deep aero rims, the Pixel is built to last

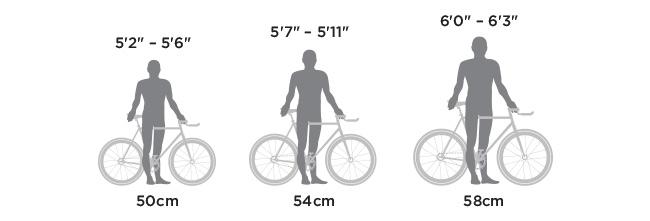

What Bike Size is right for Me?

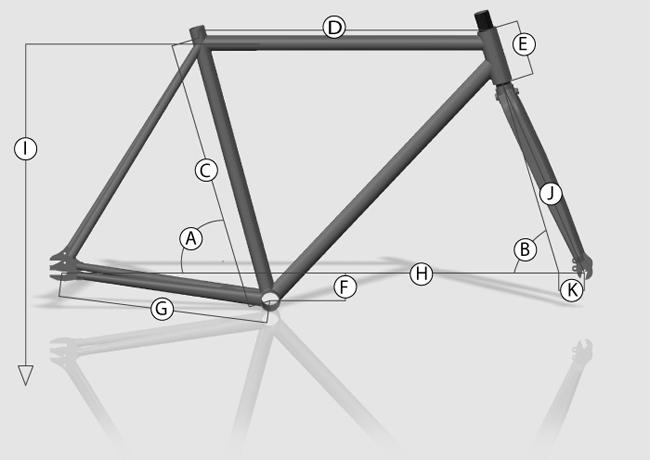

GEOMETRY

FRAME SIZE		50cm	54cm	58cm
Recommended Height		5'2" - 5'6"	5'7" - 5'11"	6'0" - 6'3"
A	Seat Tube Angle (degree)	75.0	75.0	74.5
B	Head Tube Angle (degree)	73.0	73.0	73.0
C	Seat Tube Length	500mm	540mm	580mm
D	Top Tube Length	530mm	555mm	58mm
E	Head Tube Length	90mm	117mm	155mm
F	BB Drop	60mm	60mm	60mm
G	Chainstay Length	410mm	410mm	410mm
H	Wheelbase	981mm	1001mm	1012mm
I	Standover Height	30.5in	32in	33in
J	Fork Length	393mm	393mm	393mm
K	Fork Rake	38mm	38mm	38mm

Specs

Frame	Fyxation hi-tensile steel
Fork	Fyxation hi-tensile steel
Rims/Wheels	Alloy, 30mm
Hubs	Fyxation sealed bearing hubs. Sixteen tooth single speed an fixed gear cog installed.
Spokes	Stainless, 14G
Tires	Clearance for 700x32c tires (700x28c with fenders)
Crankset	Forged aluminum. 165mm
Chainwheel	Forged aluminum. 42T
Bottom Bracket	Sealed cartridge bearing
Chain	1/8 inch
Rear Cogs	x16
Handlebars	Alloy shallow rise
Stem	3D Forged alloy stem
Brakes	Alloy dual pivot caliper
Pedals	Alloy cage Pedal w/Reflector
Accessories & Extras	Fender/rack mounts on frame and fork dropouts
Sizes	50cm, 54cm, 58cm
Weight	24.5lbs
